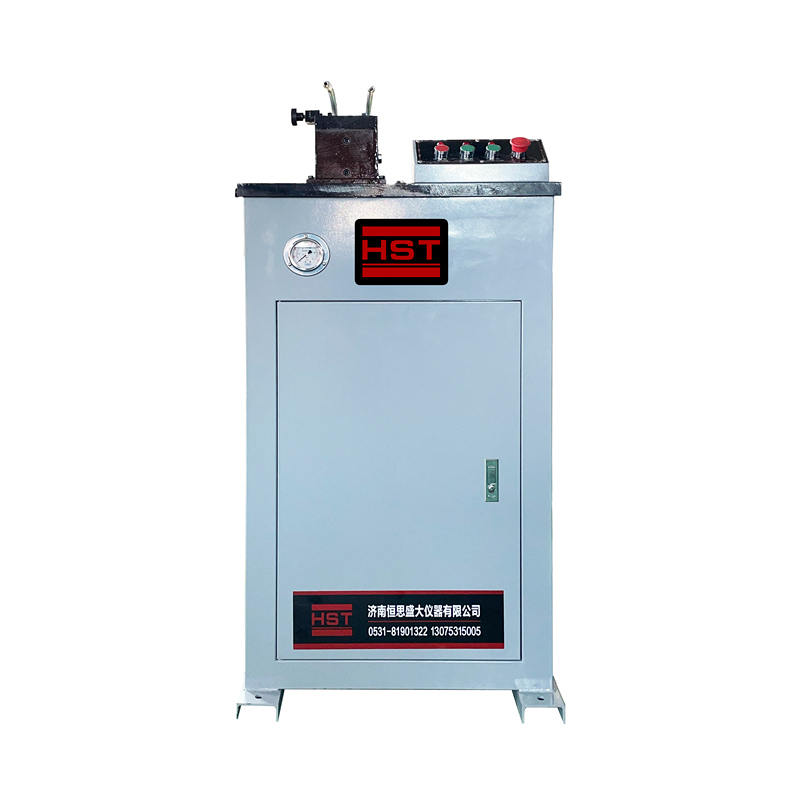

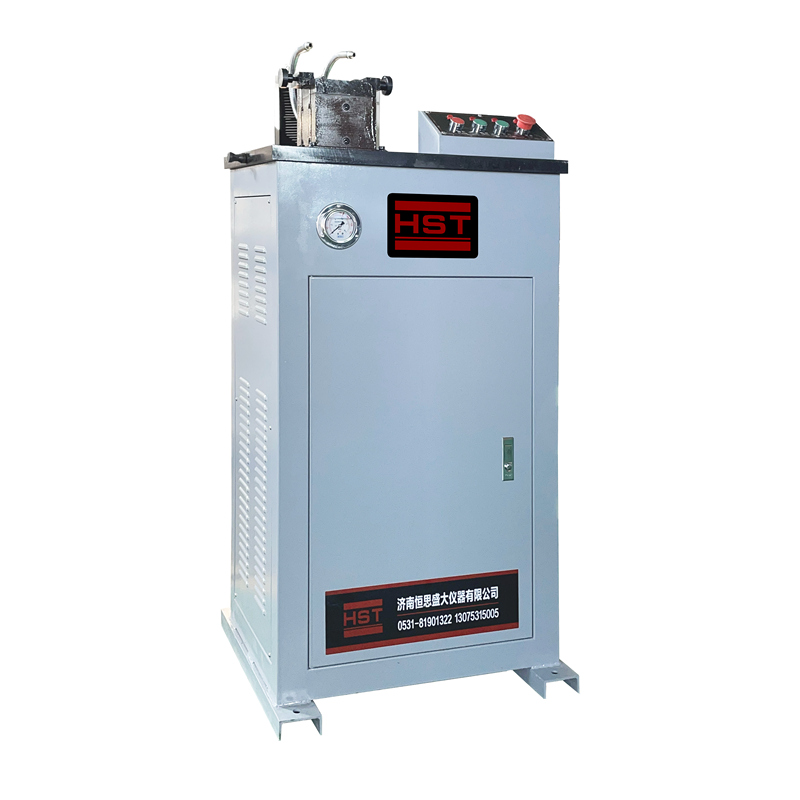

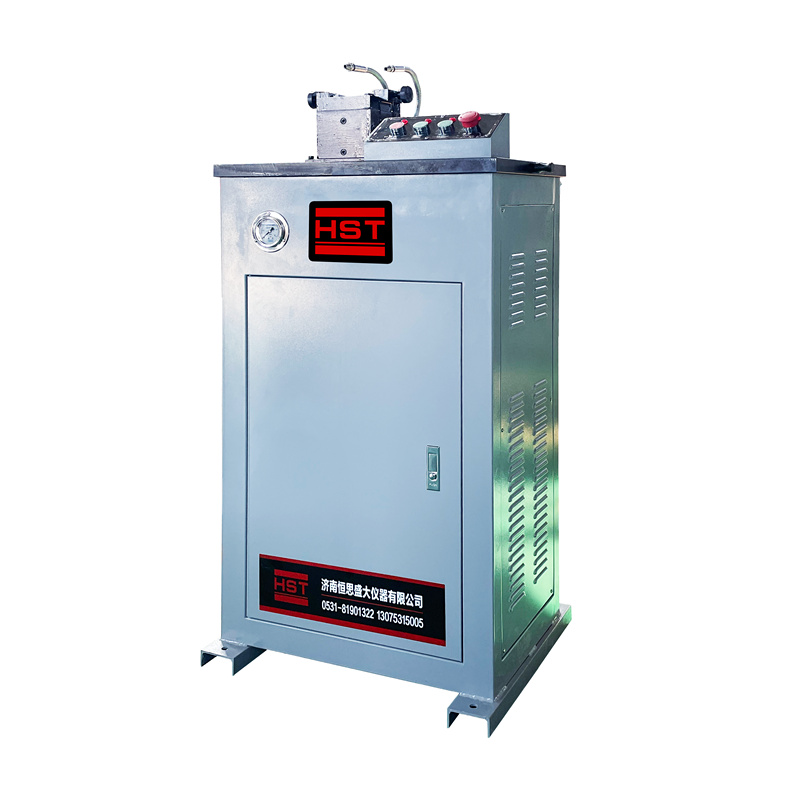

VU-2Y Hydraulic Electromechanical Broaching Machine
It is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research.
Стандарты:
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
Запросить цитату Файлы скачатьVU-2Y Hydraulic Electromechanical Broaching Machine
Application
Impact Specimen Gap Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &researchFeatures
The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;
This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
Main Technical Specifications:
| Shape of sample notch | V2 mm,U2mm，(U3mm, U5mm alternative) |
| Sample size | (10, 7.5, 5)x10x55mm |
| Cutting mode | Hydraulic |
| Journey of broach | V2, U2, U3 350mm; U5 380mm |
| Broaching Speed | 2.5m/min |
| Broach material | W18Cr4V |
| Power supply | 380V 50Hz 0.4Kw |
| Max. Dimension | 660x500x1240mm |
| Weight | 200kg |
